Big Bore Conventional / Manual Lathes PK

Geared Head Engine Lathes for Sale

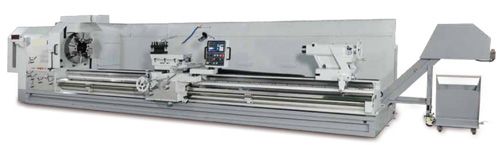

Mammoth PK

Looking to replace your old worn out Warner & Swasey Turret Lathe? We have just what you need! Our Willis PK saddle type heavy duty Turret lathes come in a variety of sizes and configurations to fit your application. These turret lathes have two carriages, spindle motors from 30 HP to 50 HP, 18 speed gearbox, 6 way power feed and rapid traverse.

Outstanding Features

  • One piece bed, floor type casting
  • 2 Shear bed way with extra way supporting the apron
  • All ways are hardened and ground
  • Alloy steel spindle with opposed taper roller bearings
  • Hardened and ground gears, shafts and cross slide ways
  • Electromagnetic spindle brake
  • 18-Speed geared headstock
  • 6-Way rapid traverse and power feed to top slide
  • Totally enclosed universal inch / metric gear box
  • Carriage position device
  • Dual voltage spindle motor, 20 to 50 HP
  • Pressurized one shot lube system for cross slide and carriage

Standard Accessories

  • Thread chasing dial
  • 2-speed tailstock quill (manual)
  • 1 dead center, MT#7
  • Pressurized one shot lube system for cross slide and carriage.
  • Coolant pump
  • Work lamp
  • Follow type splash guard
  • One piece stainless steel lead screw cover slide and carriage
  • Water and oil collect plate under apron
  • Rear side chip and water collect plate

Optional Accessories

  • Rear chip conveyor
