Big Bore Conventional / Manual Lathes PK IV

Geared Head Engine Lathes for Sale

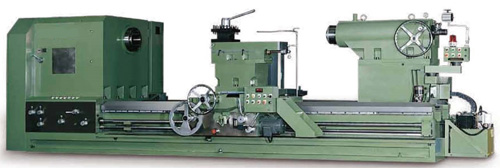

Mammoth PK IV

Outstanding Features

  • One piece bed, floor type casting.
  • 4 shear bed way with dual center guide plus front lateral way for carriage support under cutting.
  • All ways are hardened and ground.
  • Alloy steel spindle with opposed taper roller bearings.
  • Carriage position device.
  • Hardened and ground gears, shafts and cross slide ways.
  • Variable spindle speeds in 4 automatic ranges through pneumatic shifting.
  • 6-way rapid traverse and power feed to top slide.
  • Totally enclosed universal inch / metric gear box.
  • Carriage position device.
  • Dual voltage spindle motor, 40 to 100 HP.
  • Pressurized one shot lube system for cross slide and carriage.

Standard Accessories

  • Thread chasing dial
  • 2-speed tailstock quill (manual)
  • 1 dead center, MT#6
  • Coolant pump
  • Work lamp
  • Follow type splash guard
  • One piece stainless steel lead screw cover slide and carriage
  • Water and oil collect plate under apron
  • Rear side chip and water collect plate

Optional Accessories

  • Rear chip conveyor
