Willis CNC Bed Mills:

Willis Vertical Bed Mills

  • > 16" – 112" Table Sizes
  • > 40" – 98.4" X-Axis Travels
  • > 20" – 35" Y-Axis Travels
  • > 27" – 28" Z-Axis Travels
  • > Up to 4,000 lbs. Table Load Capacities
  • > R8 & 40 Taper Spindles
  • Call us for a free Willis CNC Vertical Bed Mill quote today! - (419) 537-1717

Easy access versatility!

Willis CNC bedmills provide an open frame construction ideal for loading large parts. Equipped with precision ballscrews, a heavily ribbed and thick-walled column for maximum rigidity, an extra long bolster for the z-axis, hardened and ground ways (with Turcite on opposing surfaces and gibs), and a metered automatic lubrication system, Willis CNC bedmills deliver precision machining solutions for customers throughout North America. NRTL approved machines available upon request.


Willis CNC Bed Mill Model BTM 40 with 40" X-Axis Travel and 20" Y-Axis Travel

Toolroom CNC Bed Mill features 40” x-axis travel, 20” y-axis travel, 26” z-axis travel, 16” x 54” table, 40 taper spindle, 7.5 HP spindle motor, square ways that are hardened and ground and Fagor 8055 control with conversational programming.


Willis CNC Bed Mill Model BTM 50 with 50" X-Axis Travel and 25" Y-Axis Travel

Toolroom CNC Bed Mill features 50” x-axis travel, 25” y-axis travel, 26” z-axis travel, 63” x 20” table, 40 taper spindle, 10 HP spindle motor, square ways that are hardened and ground and Fagor 8055 control with conversational programming.


Willis CNC Bed Mill Model BTM 60 with 60" X-Axis Travel and 30" Y-Axis Travel

Toolroom CNC Bed Mill features 60” x-axis travel, 30” y-axis travel, 28” z-axis travel, 73” x 24” table, 40 taper spindle, 10 HP spindle motor, square ways that are hardened and ground and Fagor 8055 control with conversational programming.


Willis CNC Bed Mill Model RTM 60 with 63" X-Axis Travel and 26" Y-Axis Travel

Toolroom CNC Bed Mill features 63” x-axis travel, 26” y-axis travel, 28” z-axis travel, 20” x 80” table, Cat 40 taper spindle, 10 HP 100 percent duty spindle motor, square ways that are hardened and ground and Fanuc 0i-MF control fourth axis ready.


Willis CNC Bed Mill Model RTM 100 with 98.4” X-Axis Travel and 35” Y-Axis Travel

Toolroom CNC Bed Mill features 98.4” x-axis travel, 35” y-axis travel, 28” z-axis travel, 16” x 54” table, 40 taper spindle, 15 HP 100 percent duty spindle motor, square ways that are hardened and ground and Fanuc 0i-MF control fourth axis ready.


RTM Series

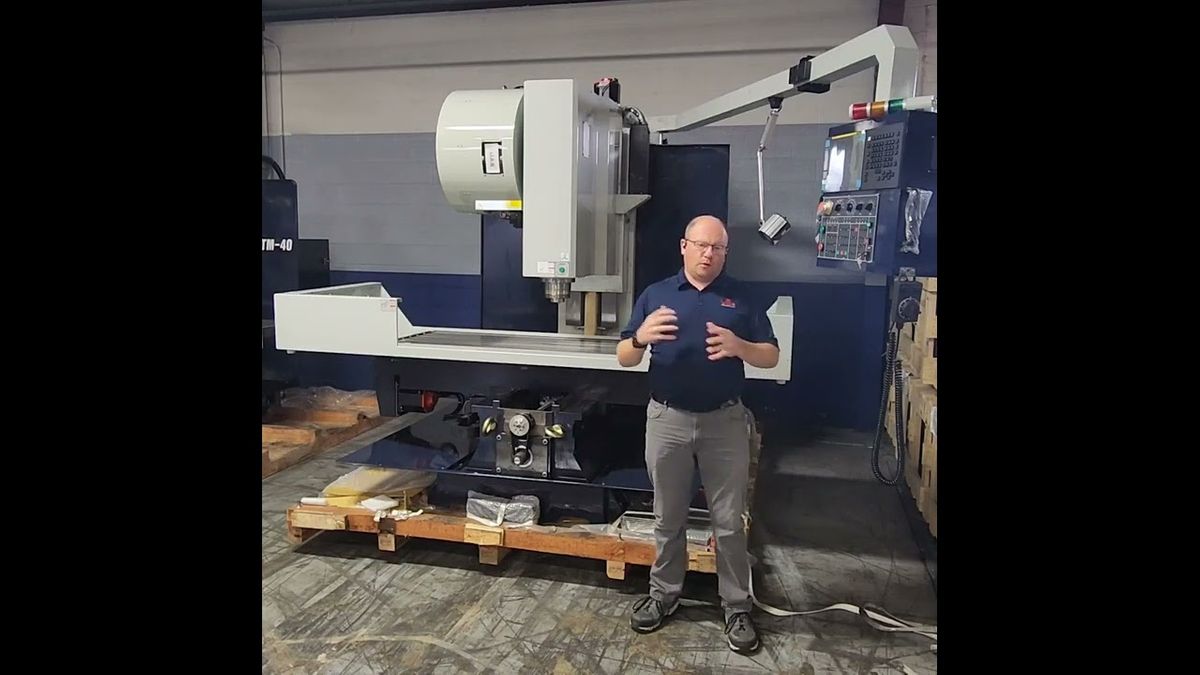

  • Willis RTM60 VMC Bed Mill Intro
