Conventional / Manual Hollow Spindle Geared Head Lathes

Geared Head Precision Lathes for Sale

The heavy duty Willis Mammoth SK & SE series conventional lathes are extremely robust, well-built, and dependable lathes. The SK & SE lathes have precision ground spindles supported at three points by high precision bearings. These hollow spindle lathes incorporate a straight forward, low maintenance design. Willis Mammoth SK & SE series geared head engine lathes feature large, widely spaced bed ways and a large diameter lead screw for maximum rigidity and minimum vibration. These lathes have a standard 4⅛” hollow spindle bore, and offer an optional 6” hollow spindle bore for the SE series. In addition, an optional rear chuck adapter, specifically designed for large diameter pipes and shafts requiring maximum holding power, for applications like oil field work, ship building, conveyor manufacturing, roller manufacturing, and hydraulic cylinder manufacturing is available on Willis geared head precision lathes.

The heavy duty Willis Mammoth SK & SE series conventional lathes are extremely robust, well-built, and dependable lathes. The SK & SE lathes have precision ground spindles supported at three points by high precision bearings. These hollow spindle lathes incorporate a straight forward, low maintenance design. Willis Mammoth SK & SE series geared head engine lathes feature large, widely spaced bed ways and a large diameter lead screw for maximum rigidity and minimum vibration. These lathes have a standard 4⅛” hollow spindle bore, and offer an optional 6” hollow spindle bore for the SE series. In addition, an optional rear chuck adapter, specifically designed for large diameter pipes and shafts requiring maximum holding power, for applications like oil field work, ship building, conveyor manufacturing, roller manufacturing, and hydraulic cylinder manufacturing is available on Willis geared head precision lathes.

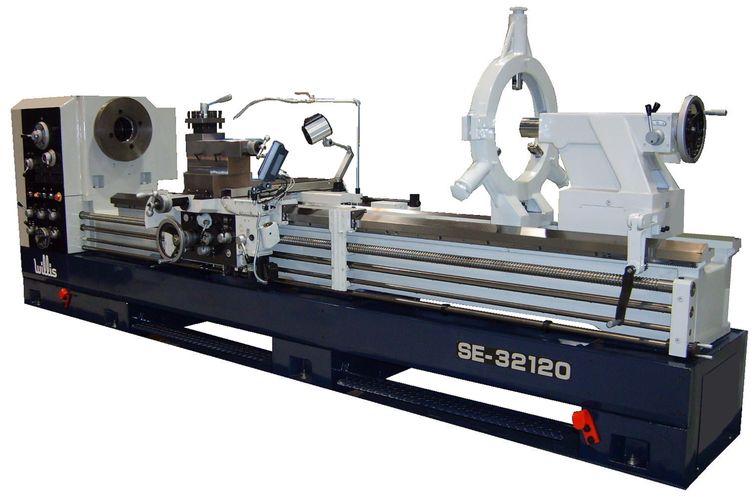

SE 32120 Conventional Lathe

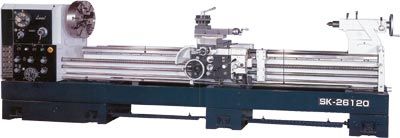

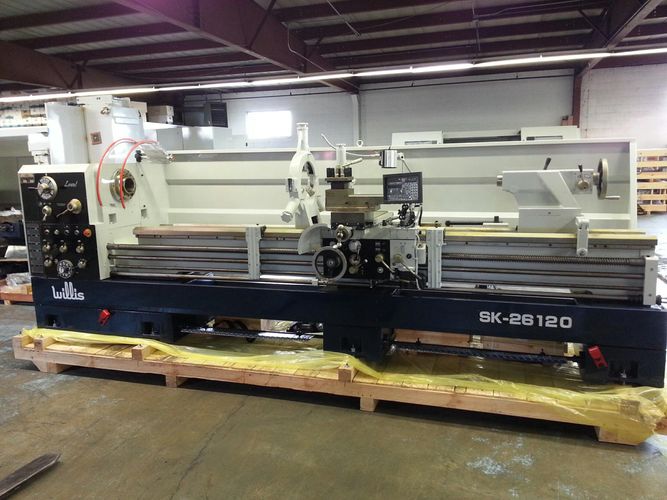

SK 26120 Conventional Lathe

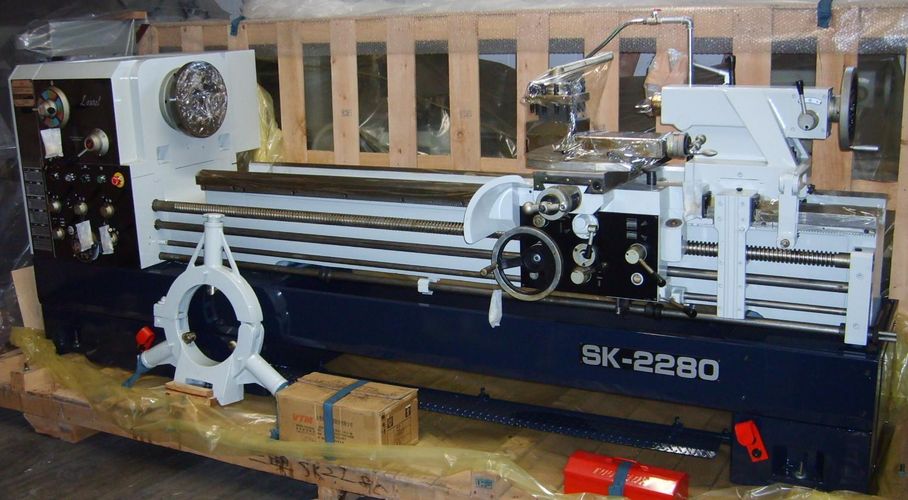

SK 2280 Conventional Lathe

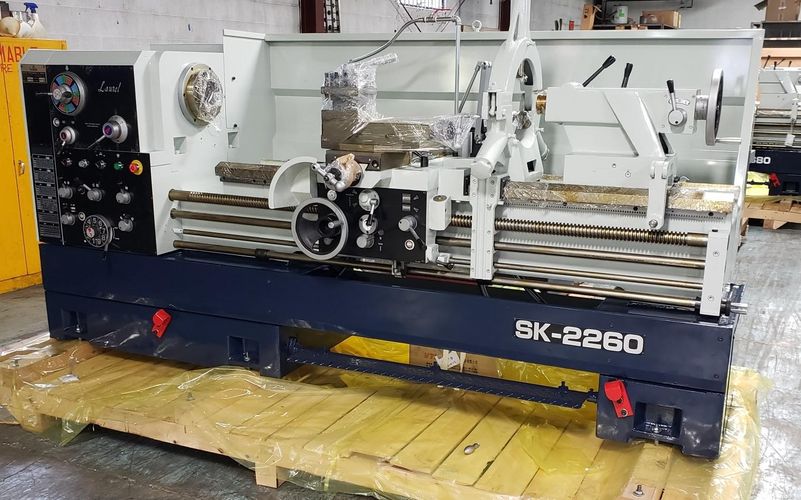

SK 2260 Conventional Lathe

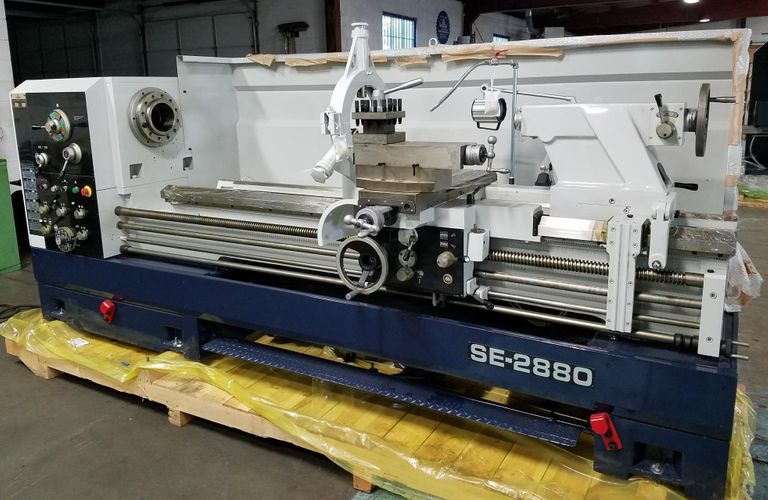

SE 2880 Conventional Lathe

Standard SK & SE Hollow Spindle Lathe Accessories:

  • SK conventional lathes offer a 4” Spindle bore with A-2-8 mounts.
  • SE conventional lathe models offer a 6” spindle bore with A-11 mounts.
  • All geared head lathes offer a gap bed and a totally enclosed universal gear box.
  • These engine lathes provide inch, metric, modular, and diametric pitch threads. An inch thread dial is also provided.
  • Automatic longitudinal bed stops are also included with these metalworking lathes SK and SE model lathes come equipped with a 2-speed tailstock quill.
  • Inch/metric dials and graduations allow for accurate and precise machining.
  • For optimal safety, a manual foot brake and an adjustable feed overload & safety clutch on the apron and carriage are standard on Willis geared head engine lathes SK & SE engine lathes provide hardened and ground gears as well as induction hardened and ground bed-ways.
  • Willis conventional lathes have manual/automatic lubrication systems for the lathe’s slides.
  • A flood coolant system enables our conventional lathes to maintain extended tool life.
  • A rotary dial system on SK & SE conventional lathes for quick and easy spindle speed changes is also provided.
  • A four-way tool post for quick tool changes is standard on Willis conventional lathes A 12” steady rest, center sleeve & 5mt dead centers are included with the SK & SE lathes.
  • Our conventional engine lathes are provided with a tool box, tools and tool-post wrench.
  • These engine lathes provide a halogen worklight for a brighter workspace.

Optional SK & SE Hollow Spindle Metal Lathe Accessories:

  • Longitudinal rapid traverse
  • 3-Jaw chucks, 4-Jaw chucks and collet chucks available for these conventional lathes.
  • Faceplates
  • Taper turning attachment
  • 15Hp motor SK series, 20Hp motor SE series
  • 6” A2-11 rear chuck adaptor for double chuck with guard.
  • Full length rear splash guard or traveling splash guard
  • Newall or Acu-rite digital readouts (DRO) are available on Willis conventional lathes
  • Chuck guards available.
  • Additional steady rests
  • 4-way rapid traverse is available for the SE series conventional lathes
  • An Aloris quick change tool-post is also available on Willis engine lathes

Willis Mammoth SK and SE Metal Lathe Specifications:
