Vertical Machining Center KMV Series


KMV-10 Vertical Machining Center


KMV-16 Vertical Machining Center

CNC VMC Features

  • High quality annealed and stress relieved castings
  • Over sized hardened and ground box ways on all axes
  • Pre-loaded and pre-tensioned high precision ball screws help to minimize temperature variation and improve machine accuracy
  • High-grade turcite on all axes provides superb wear resistance and minimal "stick-slip"
  • Fully enclosed guarding designed to provide a safe, dry and clean work environment

Fanuc Machining Center Options

  • Coolant through the spindle
  • Screw type chip conveyor
  • Chain type chip conveyor
  • 32 tool ATC in lieu of standard ATC
  • A 24-tool arm type ATC provides Willis vertical machining centers the capabilities for fast, dependable tool changes.

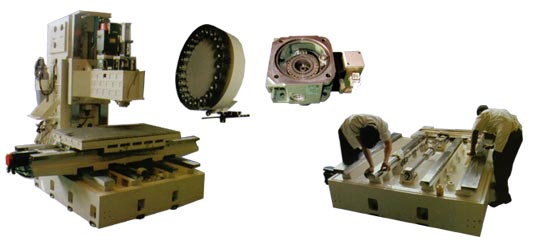

  • A massive cast iron machine base provides these vertical machining centers a strong, solid foundation with full support over the entire range of travel and excellent vibration dampening .
  • A German built 2 speed ZF gearbox provides Willis CNC machining centers with outstanding power and torque throughout the entire spindle speed range.

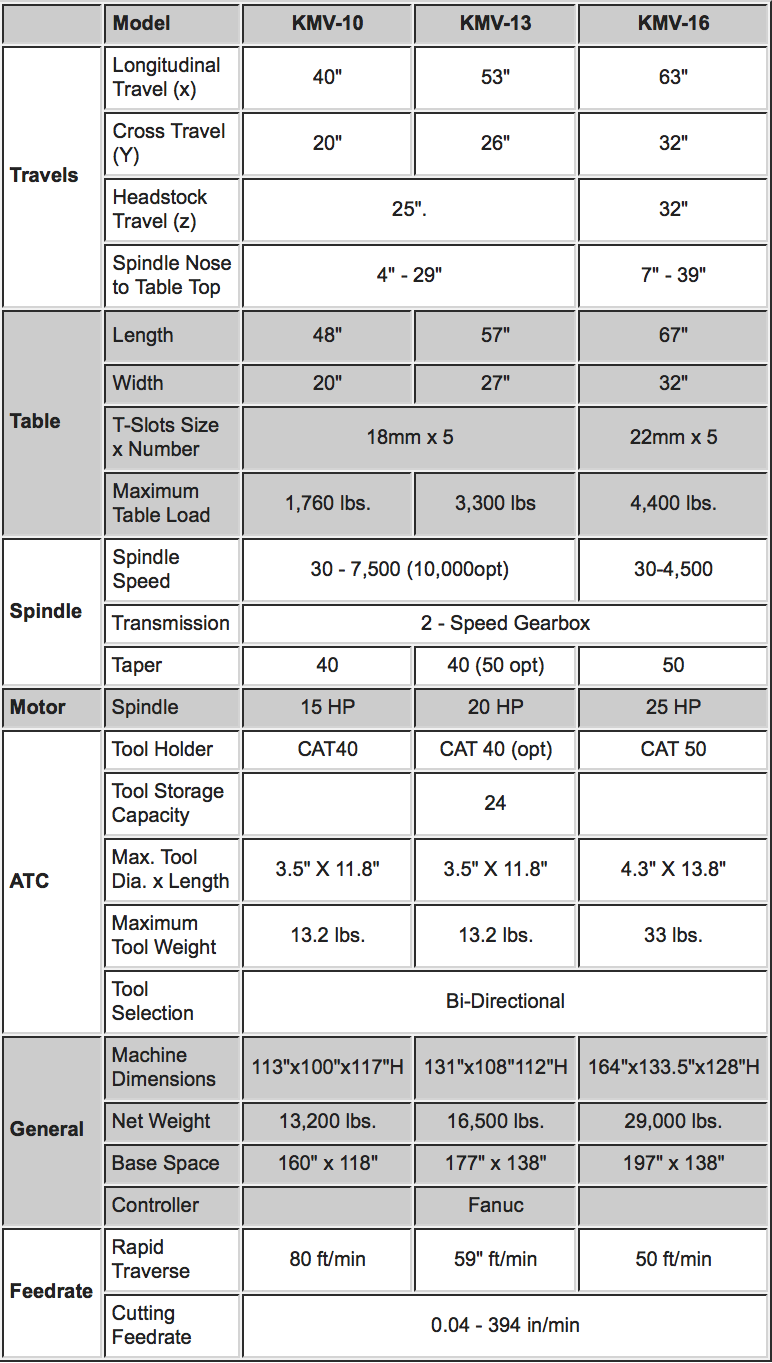

KMV Series Machining Center Specifications
