Universal Tilting Box Tables

Willis Machinery & Tools Co.

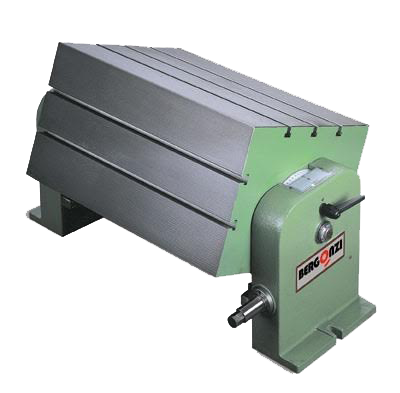

Willis-Bergonzi WB-650 Tilting Box Table

Willis-Bergonzi Tilting Box Table Features:

  • Tables Tilt from 0° to 90°
  • Exact angle can be obtained by reading conveniently placed index dial
  • Adjustable by means of hand crank which turns worm gear, worm screw assembly
  • Locking & unlocking is activated by hand lever and expansion jaw (2 levers & 2 jaws for model WB-750)
  • Tilting angle bracket never overhangs and is supported by large double trunions
  • Inclination (Min. - Max.): 0° to 90°

Model

Willis BERWB-650

Descrption

650mm x 450mm Tilting Box Table

List Price

$5,270

Model

Willis BERWB-750

Descrption

750mm x 550mm Tilting Box Table

List Price

$6,830.00

Willis-Bergonzi Tilting Box Table Dimensions:

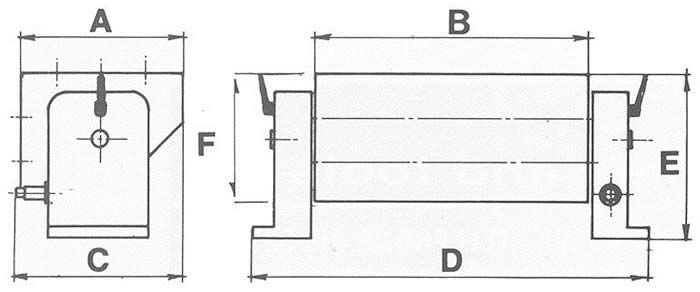

  • Willis-BergonziTiltingBoxTableDimensionalDrawing_001.jpg

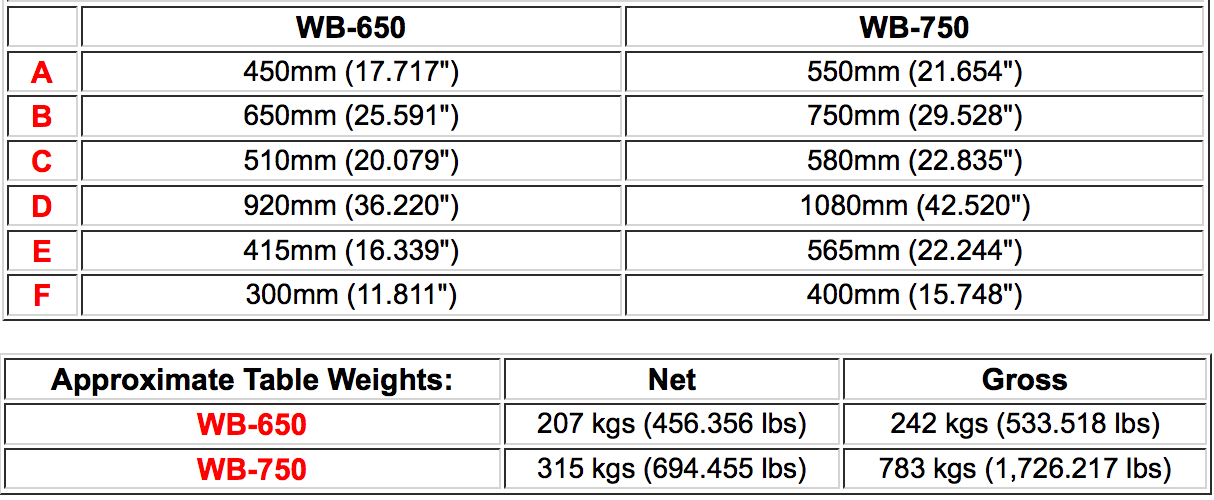

  • willis-bergonzi.png
